| Type of Connector |

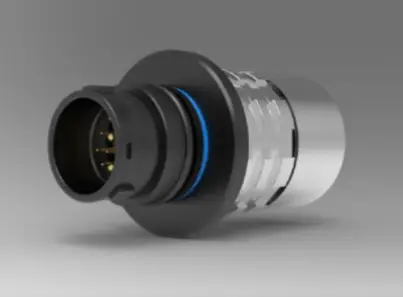

12 pin HD Plug |
| Size |
0 |
| Number of Contacts |
12 |
| Keying |
Blue |
| Contact Type |
Pins |
| Contact Diameter |
10x 0.3 mm; 2x 0.7 mm |
| Cable Diameter |
NA |
| Insulator Material |
PEEK |
| Wire Cross Section |
22 AWG; 28 AWG |
| Termination Type |
Solder |
| Termination Diameter |
NA |
| Data Transmission |
USB 3.2 Gen 1×1 (5 Gbit/s) |
| Degree of Protection |
IP6K8 / IP6K9K |
| Operating Temperature |
-51°C – 125°C |
| Mating Cycles |
5000 |
| Shell Finish |
Cu-alloy with Ruthenium finish |
| Contact Finish |
Cu-alloy with Ruthenium finish |
| Current Rate (Amps) |
1A, 5A |
| Voltage |
250VAC |
| Alternative Part # |
A10WCM-P12XMM0-0000 |
