| Images |
|
| Type of Connector |

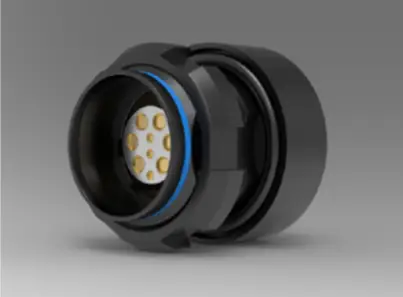

9 pin Rear Panel Mount Receptacle |
| Size |
0 |
| Number of Contacts |
9 |
| Keying |
Blue |
| Contact Type |
Sockets |
| Contact Diameter |
3x 0.3 mm; 6x 0.7 mm |
| Cable Diameter |
NA |
| Insulator Material |
PEEK |
| Wire Cross Section |
NA |
| Termination Type |
PCB |
| Termination Diameter |
NA |
| Data Transmission |
USB 2.0 (480 Mbit/s) + Power |
| Degree of Protection |
IP6K8/ IP6K9K |
| Operating Temperature |
-51°C – 125°C |
| Mating Cycles |
5000 |
| Shell Finish |
Cu-alloy with Ruthenium finish |
| Contact Finish |
Cu-alloy with gold finish |
| Current Rate (Amps) |
1A, 5A |
| Voltage |
0.75 kVDC |
| Alternative Part # |
GK0WCM-P09WMM0-000L |
